This independent Level 3 damp survey was performed on a flat located in Kennington (SE11). The property owner instructed the investigation to establish an accurate diagnosis of water staining on internal ceilings and walls. The specialist survey provided an objective assessment without commercial sales bias.
About the Issue
The property owner noticed active water dripping and staining at the upper corner of the front office ceiling, as well as damp spotting on upstairs bedroom walls and historic marks on the ensuite ceiling. Fearing structural wall failure or rising dampness, they requested a professional health check.
The Challenge
To deliver a complete diagnostic assessment, a Level 3 survey was executed across all rooms, checking structural elements, internal air quality and high-level external roof drainage.
The surveyor recorded the following key physical findings:
- Front office ceiling staining exhibited a classic penetrating damp pattern from above, ruling out ground-level rising damp.
- High-resolution drone imagery showed areas of pooling water on the roof deck and blocked or neglected guttering.

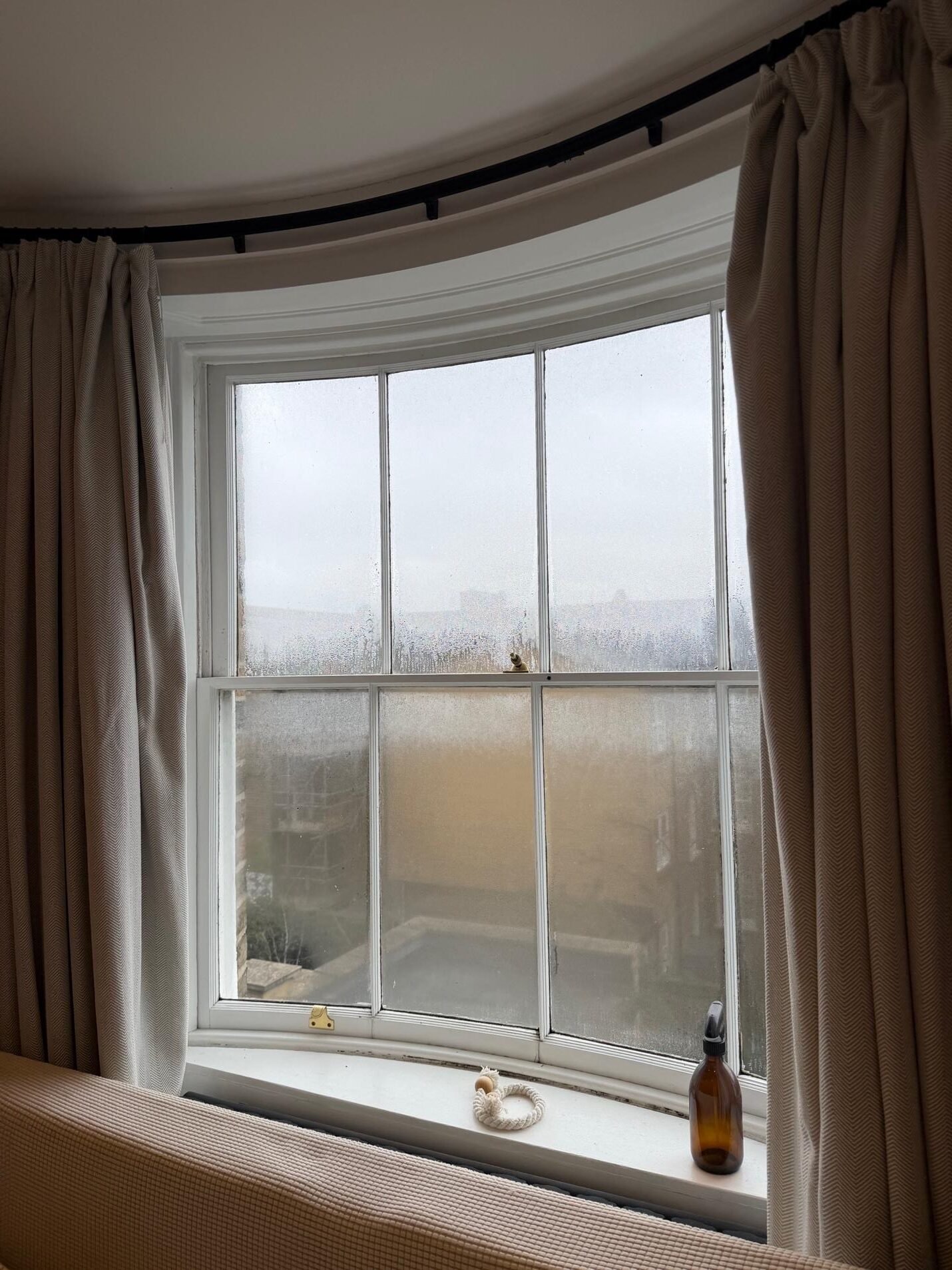

- Ambient testing in the upper bedroom recorded high relative humidity, causing window condensation and surface mould due to unvented ensuite shower steam.
- Moisture testing on the kitchen floor confirmed zero dampness.
Structural assessments verified that the building was sound. External pointing was in good condition, no structural movement was present and accessible timbers were completely free from wet rot, dry rot and woodworm.
The Solution
The action plan focused on stopping external roof penetration and managing indoor relative humidity:
- Instruct a qualified roofing contractor to resolve roof pooling, improve drainage falls and clear and repair guttering.
- Install a high-capacity dehumidifier with a continuous drain outlet connected to a waste pipe.
- Enhance ventilation inside the ensuite shower area to extract moisture efficiently.
- Redecorate affected internal areas using breathable finishes only after moisture meters confirm walls are dry.
The Outcome
The homeowner gained full confidence that their flat was structurally sound. By isolating the office leak to roof maintenance and the bedroom dampness to shower humidity, the survey saved the owner from unnecessary structural wall tanking or plastering.
Why This Case Matters
Visual water stains on high ceilings are frequently misdiagnosed by general inspectors, leading to confusion over rising versus penetrating damp. Specialist diagnostic surveys use aerial inspection tools to verify roof performance, ensuring property owners only pay for genuine exterior repairs.
