An independent Level 3 damp survey was carried out on a residential house in West Ealing (W13). The property owner requested the survey to investigate severe wall dampness inside a bedroom. The comprehensive check delivered an impartial, expert appraisal of the property’s overall condition.
About the Issue
Concerns arose after the homeowner identified significant dampness on a bedroom wall. They feared that rising dampness was spreading through the ground floor or that concealed pipework was leaking inside the wall structure.
The Challenge
The inspection involved testing internal walls, floor surfaces, plumbing runs, microclimate conditions and external building elements using calibrated diagnostic tools.
Key testing results and observations included:
- Calibrated damp meter testing on the bedroom wall yielded very high moisture readings.
- Environmental testing recorded 47.2% relative humidity, ruling out condensation.
- Visual and physical timber checks confirmed zero evidence of wet rot, dry rot, or woodworm.

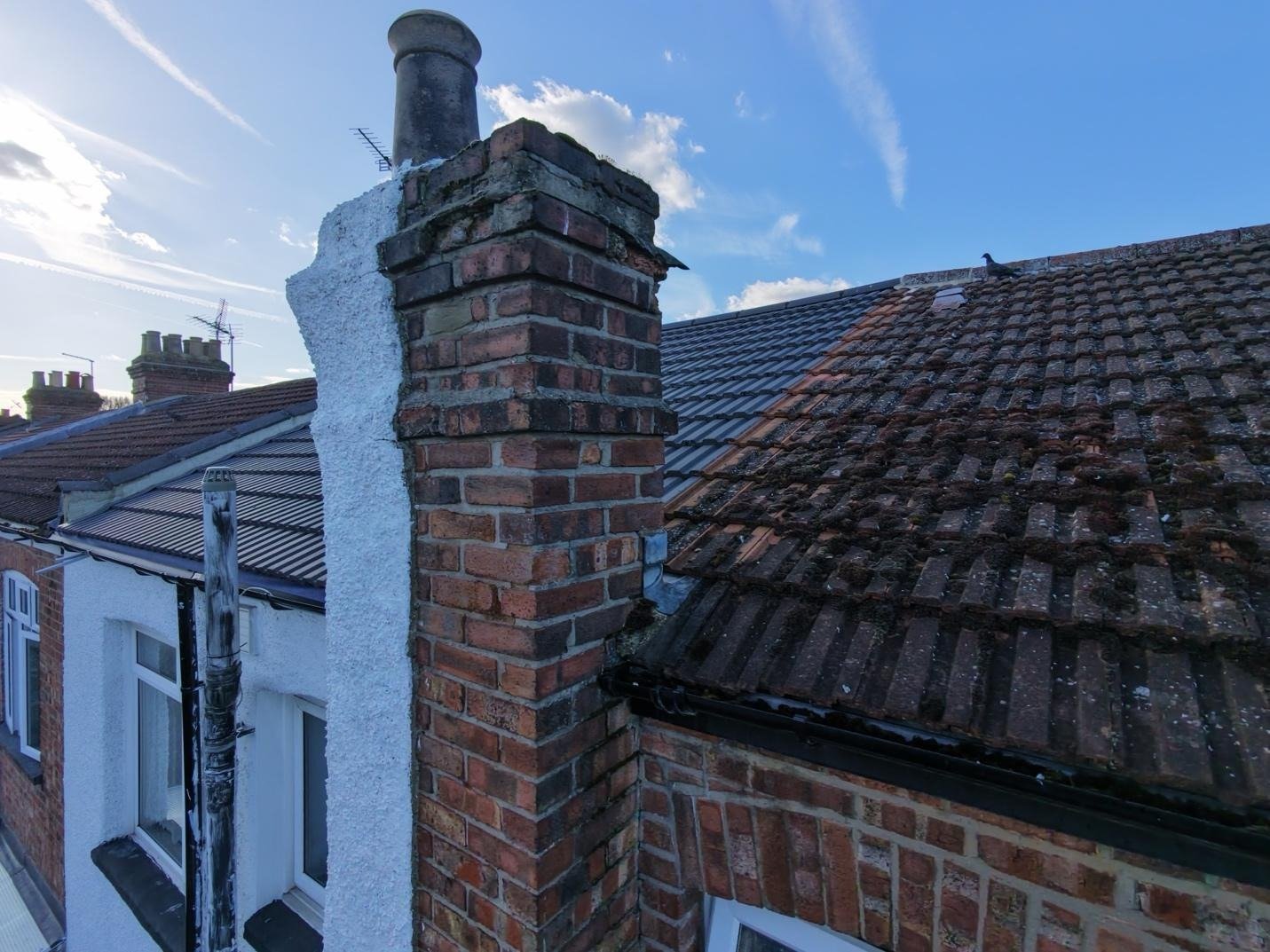

- Inspection of external rainwater goods revealed faulty, likely blocked guttering discharging water down the wall surface, supported by a localised brickwork pointing defect near the chimney breast.
Plumbing runs were leak-free, overall brickwork pointing was in good condition and structural integrity was sound. The surveyor concluded that external rainwater overflow was the sole driver of the bedroom dampness.
The Solution
The report detailed a practical action plan to stop water penetration and restore the bedroom interior:
- Commission a qualified roofer to repair and clean the guttering system to prevent water overflow.
- Repoint the small section of defective brickwork near the chimney breast.
- Provide sufficient drying time for the internal bedroom wall once external leaks are stopped.
- Apply a fresh coat of paint to the bedroom wall after moisture meters verify dry conditions.
The Outcome
The homeowner received definitive proof that their property was structurally healthy and free from rising damp or pipe leaks. Choosing an independent specialist survey saved them from unnecessary, expensive wall tanking, directing their budget strictly to roofline and pointing upkeep.
Why This Case Matters
When water overflows from blocked gutters, continuous masonry saturation creates internal damp marks that mimic serious structural faults. Independent diagnostic surveys verify external building fabric performance, ensuring root causes are rectified first.
